Available in 2 heights.
Rathmell 4 Column
Share this product
Customise Now
Additional information

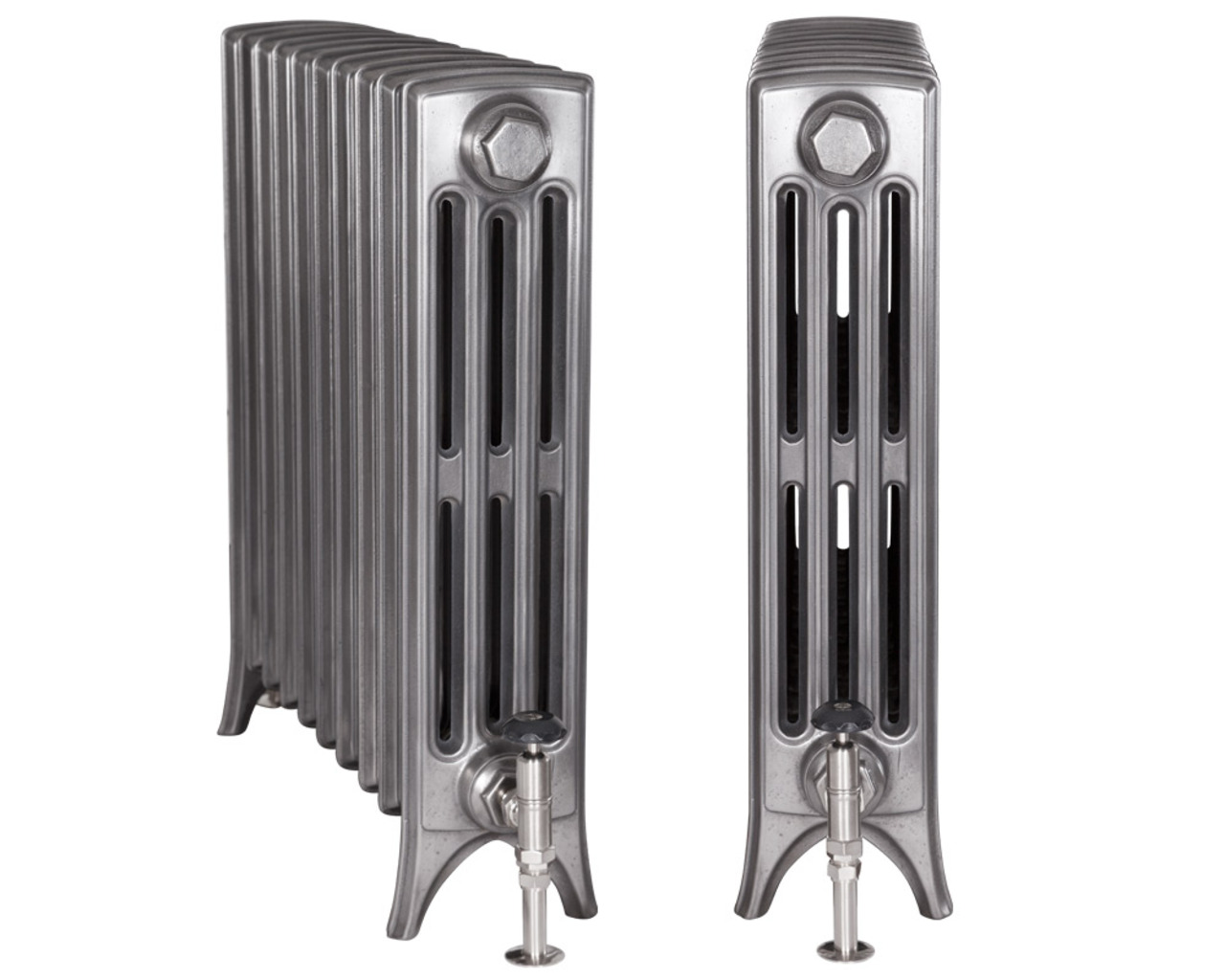

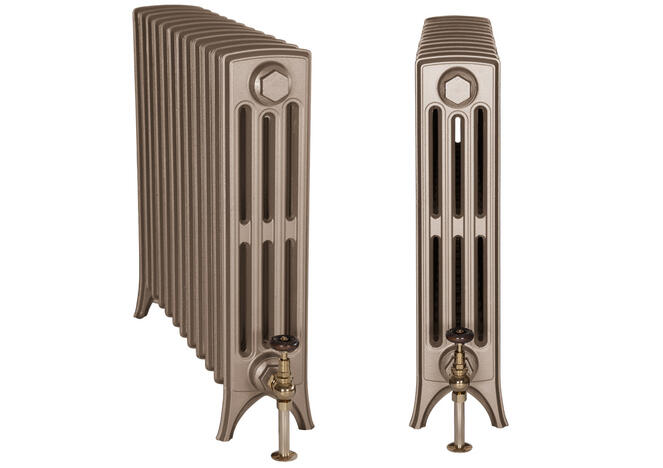

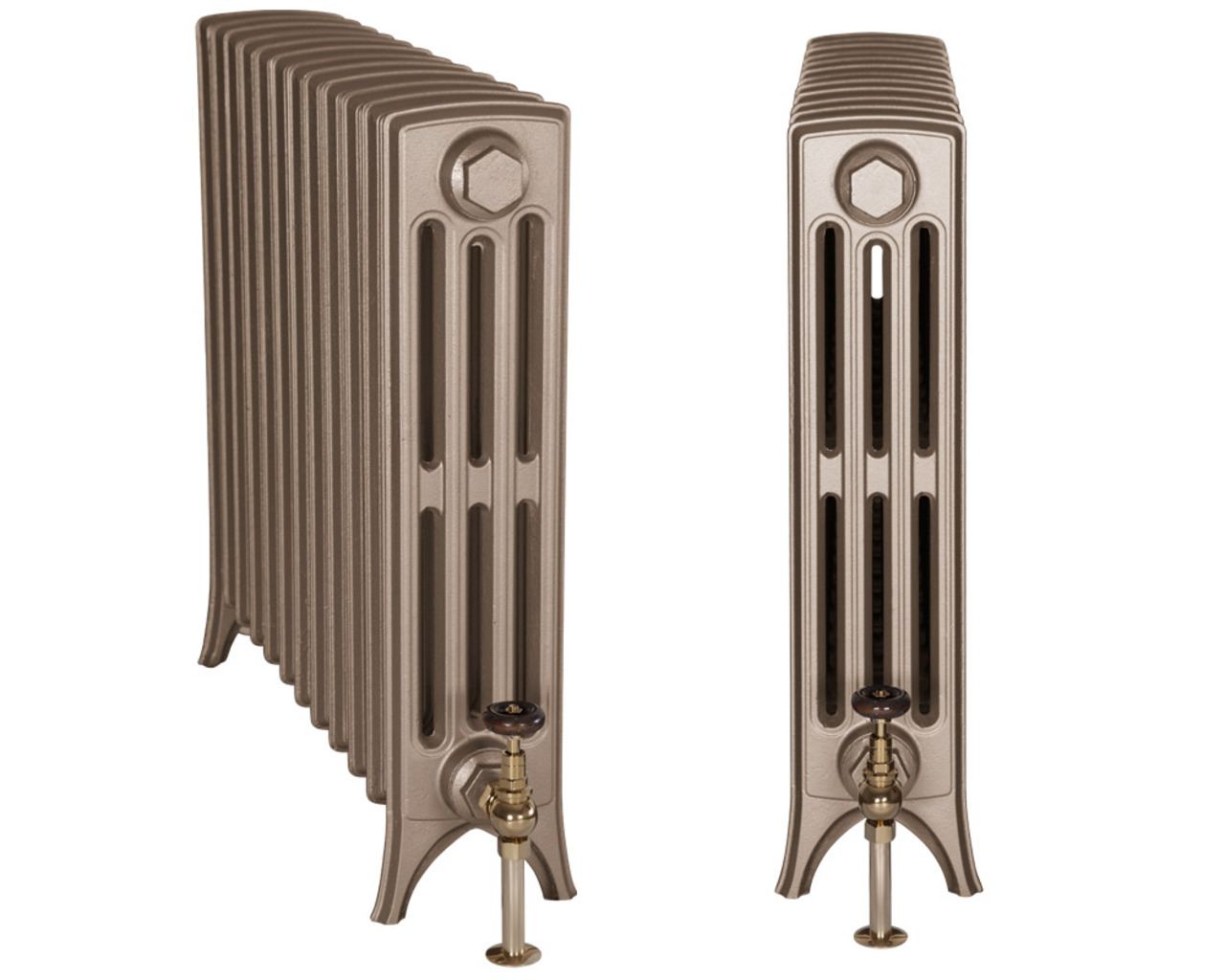

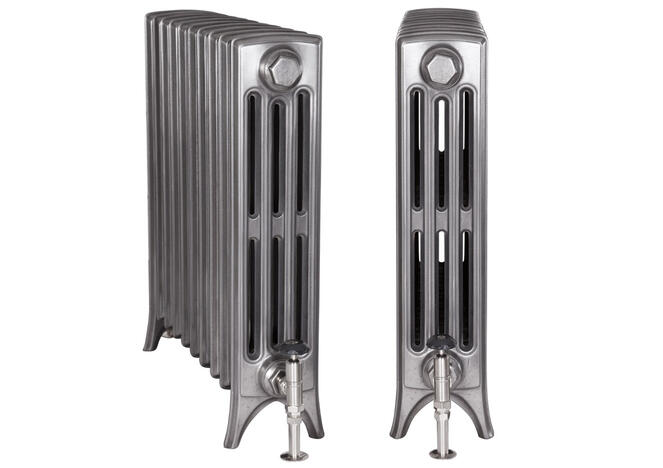

Rathmell 4 coloumn radiatior. Very similar to that of of the tradiational 4 coloumn radiator however the feet are more ornate with a kick out fininsh.

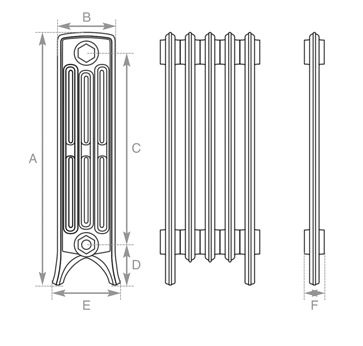

Dimensions reference table
| Code | Column Qty |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
Delta 50 | Delta 60 | Weight (KG) | |||
| BTUs | Watts | BTUs | Watts | Empty | Filled | ||||||||
| tbk072 | 4 | 460 | 160 | 300 | 110 | 180 | 63 | 201 | 59 | 252 | 74 | 4.2 | 4.9 |
| TBK067 | 4 | 650 | 150 | 479 | 112 | 170 | 65 | 289 | 65 | 306 | 107 | 1000 | |
- As each radiator is hand built measurements given are for guidance only and should not be used for the location of pipe work
- Neither Nostalgia and New or our manufacturer accepts any responsibility for customers/clients who choose to install pipe work prior to having their cast iron radiators delivered to site.
- Output figures are based on Delta 60 calculations.
- We endeavour to ensure that colours are as accurate as possible.
- All of our cast iron radiators are brand new and fully tested to BS EN442-1 and BS EN442-2, are BSRIA compliant and have a manufacturer’s lifetime guarantee.
